KK series single-axis robot for KKR8610C
Description
Product Details:
| Model No. : | KKR8610 |
|---|---|
| Brand Name : | SKL |
| status : | New |
| Applicable industry : | Robot industry, Electrical Automation, Aerospace, CNC equipment, automated production lines, intelligent workshops, AI |
| Out-of-warranty service : | Video Technical Support,Online Support |
| Where to provide local services (in which countries are there overseas service outlets) : | None |
| Showroom location (in which countries are there sample rooms overseas) : | None |
| Video factory inspection : | Provided |
| Mechanical test report : | Provided |
| Marketing type : | Ordinary Product |
| Core components : | Bearing,Gearbox,Motor,Screw |
Product Description:
The KKR Single-axis robots combine screws and rails for better performance in terms of accuracy, rigidity, quick installation and space saving. The optimized U-shaped guide can not only guide the sliding motion on the ball screw, but also be used as a structural component when assembling multi-axis motion systems.
Product Feature：
1.Accuracy level：Max ±0.005mm
2.Driving system：It can be driven with servo motor and partial moto
3.High Protection：Aluminum cover design can prevent foreign bodies from entering, avoid foreign bodies involved in the failure
4.Easy to install:The bottom synchronously corresponds to the threaded hole, through the hole
5.High speed: Up to 1000mm/s(lead 20mm, speed 3000RPM) according to specific requirements

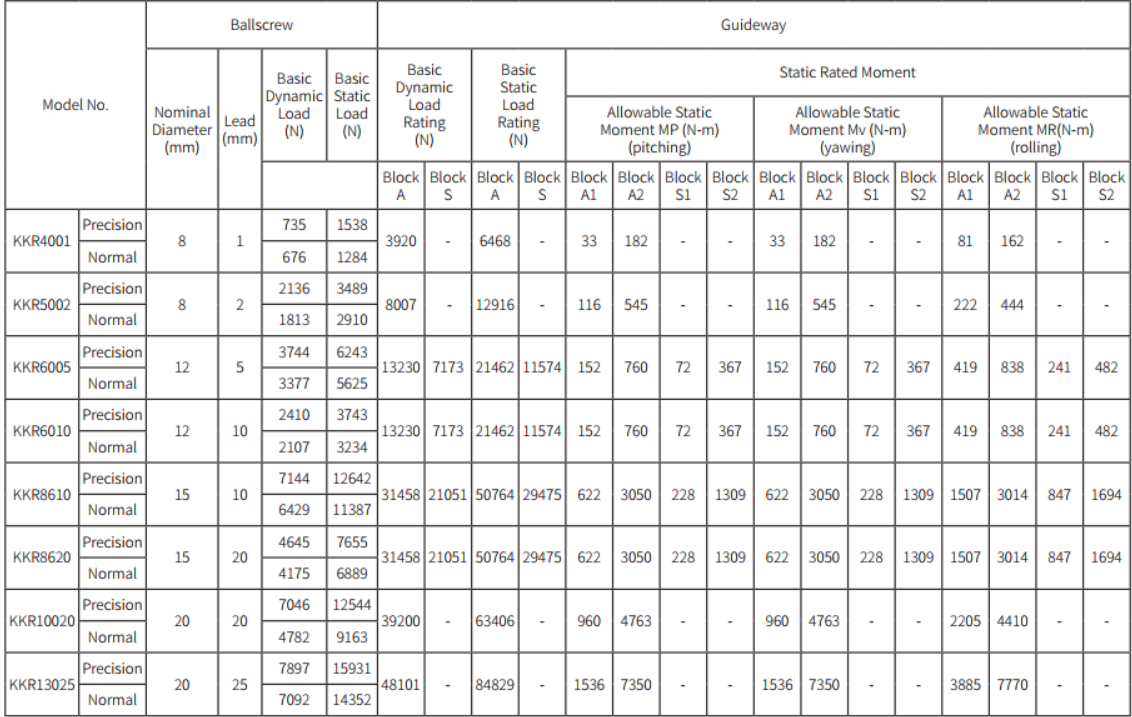

Product Standard:

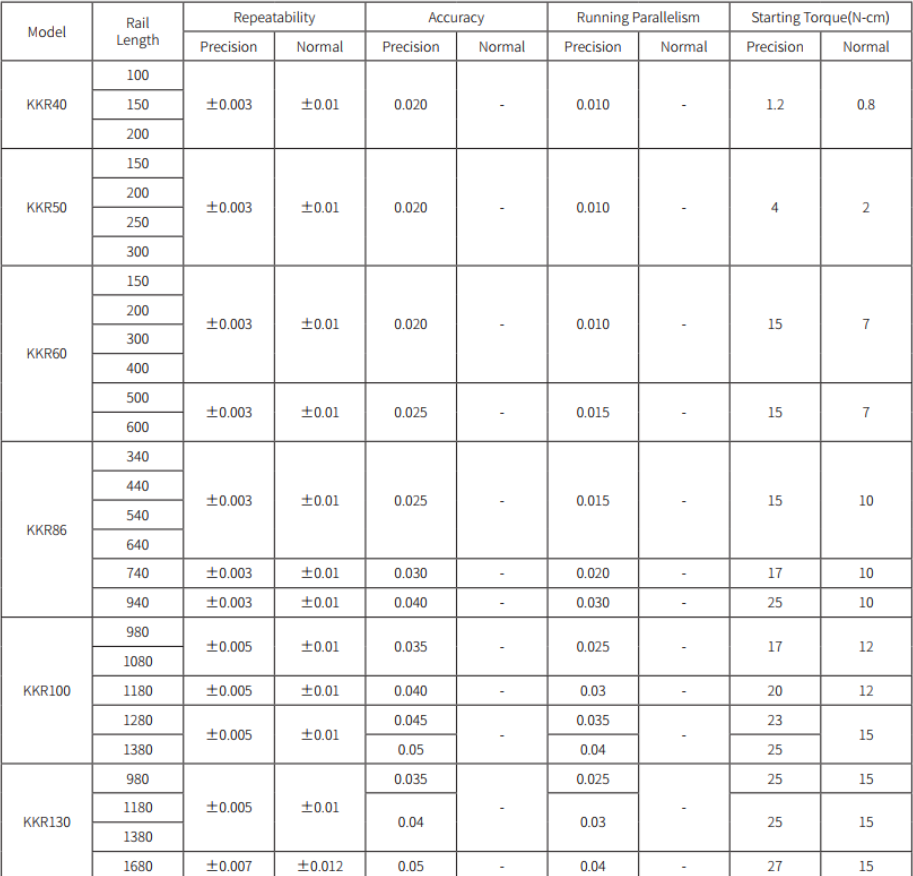

Accuracy Grade:

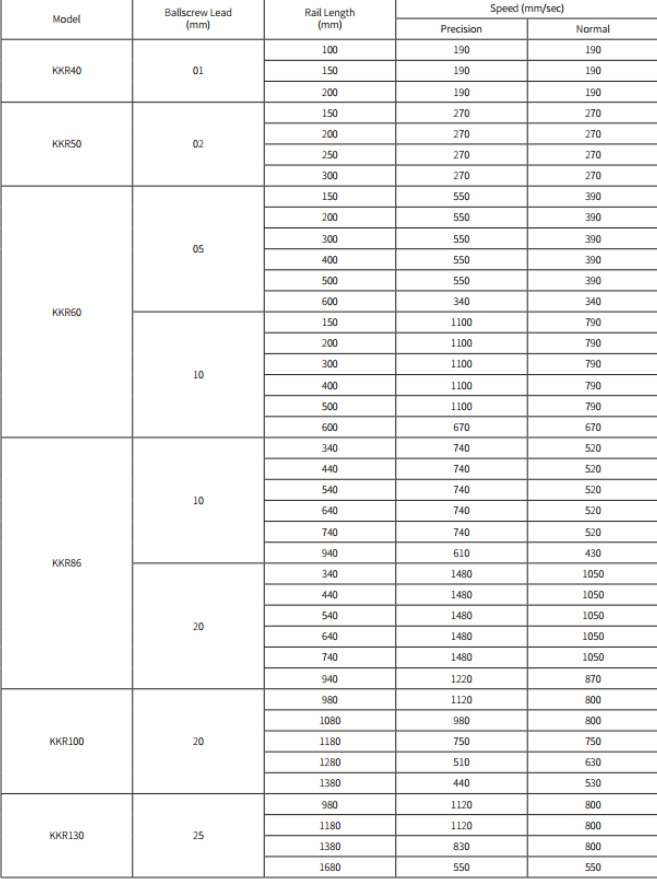

Maximum Speed Limit:

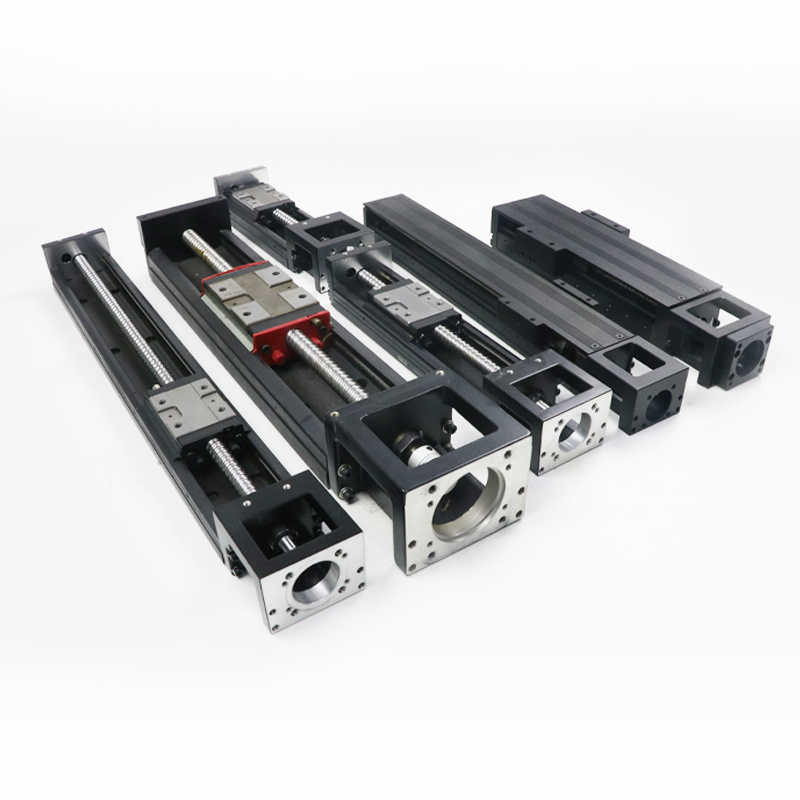

Real Picture:
For more details, please contact the sales staff by email
