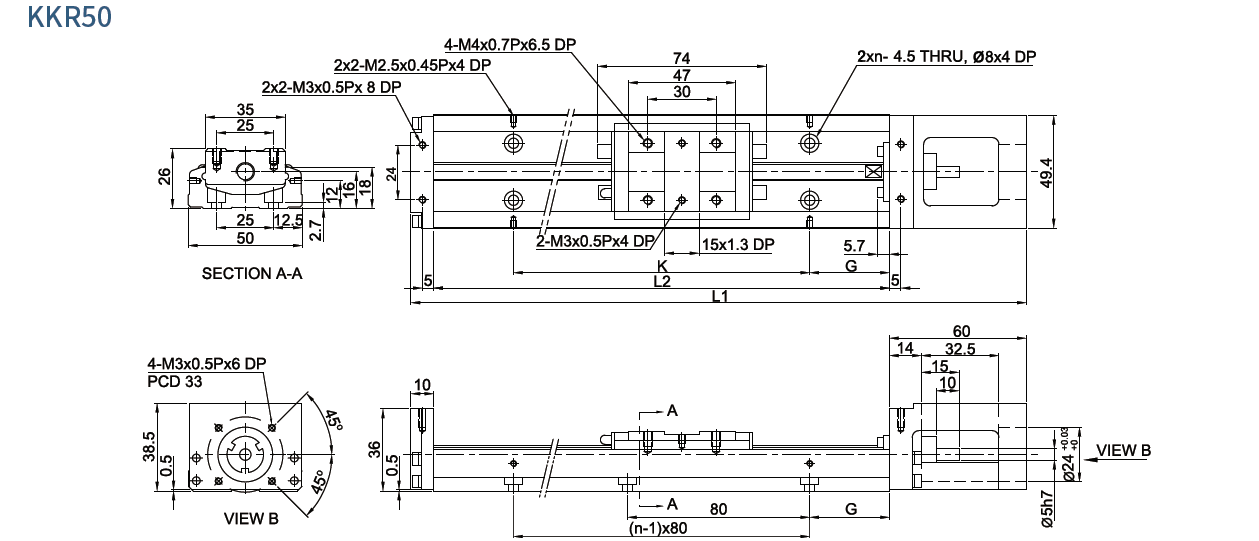

KKR50 Series
KKR50 Series
The KKR Single Axis Robot integrating a ball screw and guide ways forms a modularized product. The modularized design can help customers save time, cost and system inspection. Therefore, installation efficiency and a space-saving design are also promoted.
Description
| Rail Length L2(mm) | Total Length L1(mm) | Maximum Stroke（mm） | G（mm） | K(mm) | n | Mass（kg） | ||
| A1 Block | A2 Block | A1 Block | A2 Block | |||||
| 150 | 220 | 70 | - | 35 | 80 | 2 | 1 | - |
| 200 | 270 | 120 | 55 | 20 | 160 | 3 | 1.2 | 1.4 |
| 250 | 320 | 170 | 105 | 45 | 160 | 3 | 1.4 | 1.6 |
| 300 | 370 | 220 | 155 | 30 | 240 | 4 | 1.6 | 1.8 |
